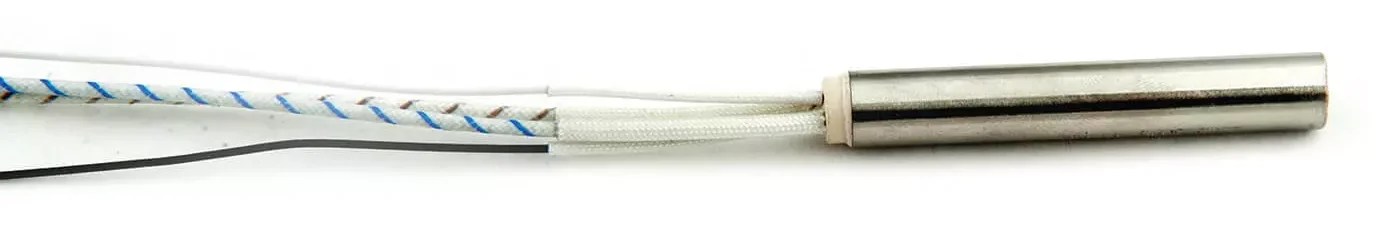

High Density Cartridge Heater (RAC)
The form of construction of these heating elements, allows its use in adverse conditions, such as vibration and high temperatures and that can reach over 500 ° on the surface of the cartridge.
Consult in each case with our technical department.
High Density Heaters (RAC), are ideal for the installation of a high power in minimal space.
General Specifications
- Flexible leads from inside in standard models.
- 250mm Fiberglass/Silicone leads in standard models.
- 1000mm Fiberglass/Silicone leads (with thermocouple FeCu / Ni (J), PTFE insulation), standard models.
- Standardized measures in metric diameters (mm).
|
6.50
|
8
|
10
|
12,50
|
16
|
20
|
|---|---|---|---|---|---|
Ø Tolerance:
UP TO 300 mm: -0,02 -0,06
UP TO 1.000 mm: -0,02 -0,10
OVER 1.000 mm: ± 0,10.
- Standard diameters in inches (“)
Ø Tolerance:
UP TO 300 mm: -0,02 -0,06
UP TO 1.000 mm: -0,02 -0,10
OVER 1.000 mm: ± 0,10.

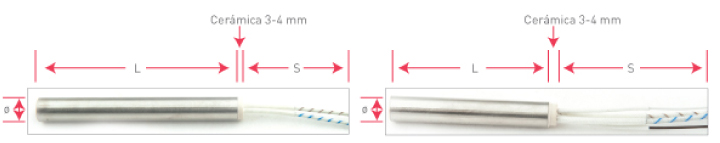

- Length tolerance:
Up to 130mm: +0 -2 mm
More than 130mm: ±1.5%.
Other Diameter
- We are able to supply any diameter between 3 mm and 25 mm.
- Other diameters on request.
- TIG welded stainless tube.
- Flexible fiber glass insulated nickel wires from inside (standard models).
- Core and insulation compacted magnesium oxide.
- Heating wire Ni/Cr80/20.
- Ø Tolerance for diameters from 25 mm + -0.10.
Quality control
- Insulation: 5 MOhm at 500 V DC Cold (minimum).
- Dielectric strength: 1500 V 1 second.
- Nominal Power: + 5% – 10%
Instructions (for guidance) to place and mount

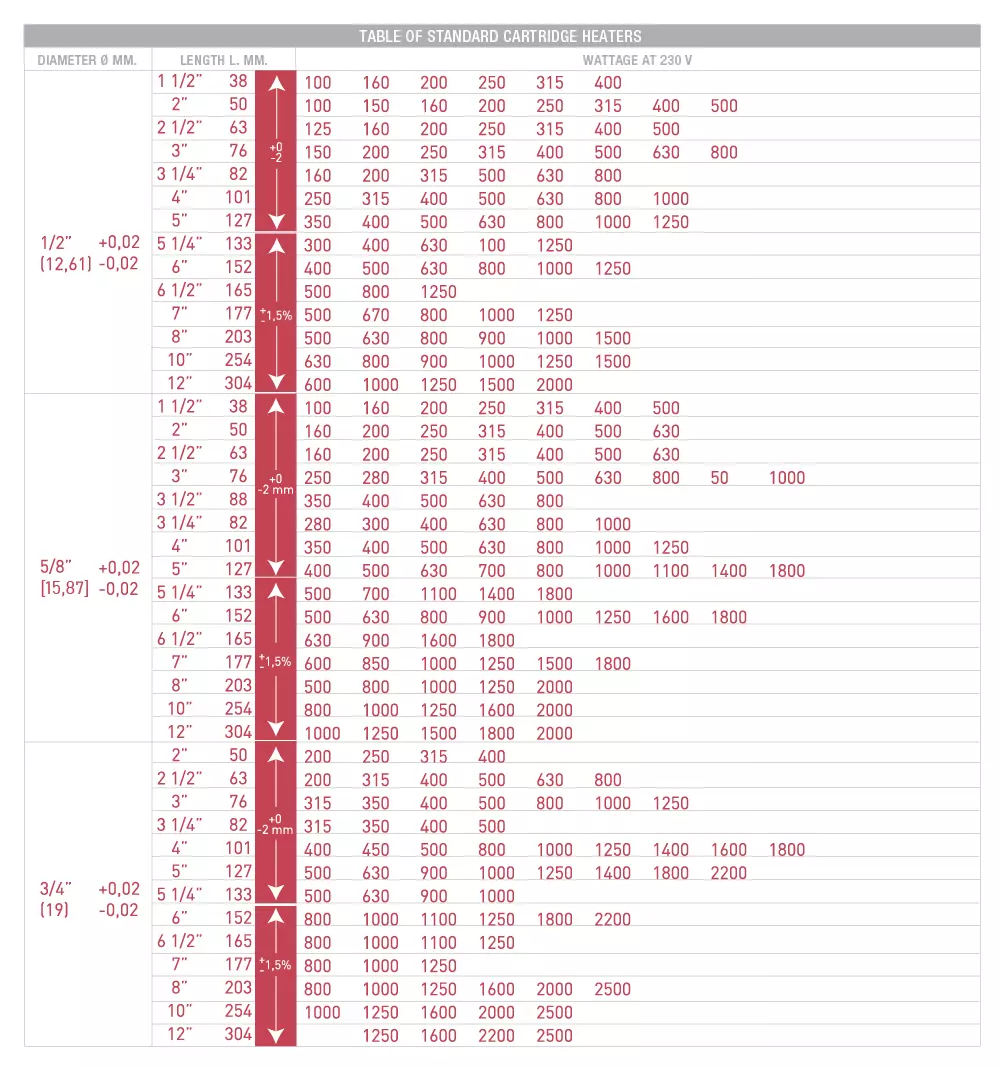

HOLE TOLERANCE CHART

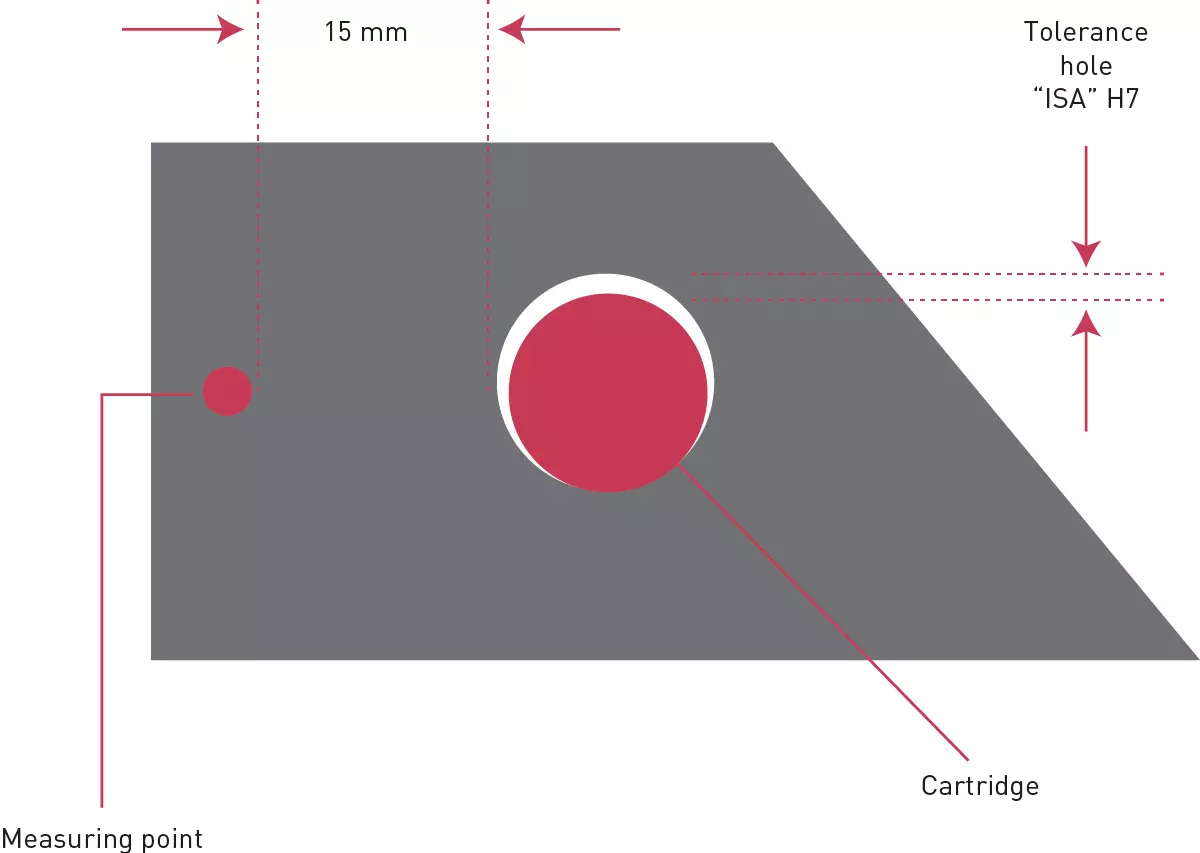

The adjustment of the cartridge in the hole is very important for the proper functioning and performance.
The regulation of the temperature is essential and for this we recommend to place the measuring point not more than 15mm separately from the cartridge.
Connection types for cartridges with built-in THERMOCOUPLE
We can place thermocouple type J (Fe Cu Ni), type K (Ni Cr Ni), type T (Cu Cu Ni)
If the customer says otherwise the thermal sensor is installed always insulated to avoid problems on sensitive control devices.

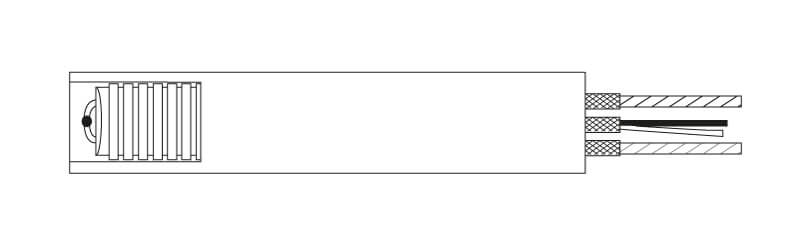

OPTION 1. THERMOCOUPLE ON THE CARTRIDGE BASE ISOLATED
STANDARD Placement of the thermocouple. Right choice to avoid problems sensitive control devices.

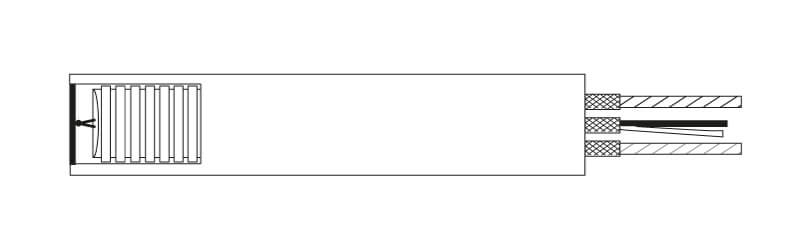

OPTION 2. THERMOCOUPLE ON THE CARTRIDGE BASE GROUNDED.
Option indicated when rapid measurement is required.
NOTE: This option is not valid for highly sensitive regulation devices

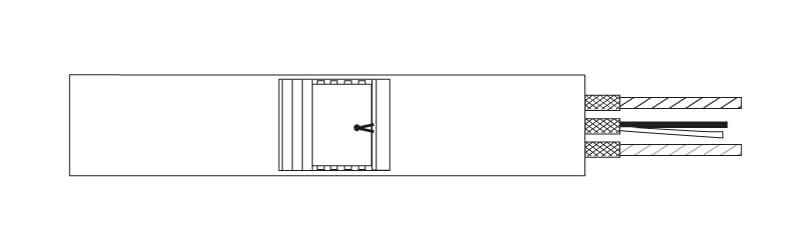

OPTION 3. THERMOCOUPLE ISOLATED AND CENTERED
This option can be performed on elements from 3/8 “(9,52) ø

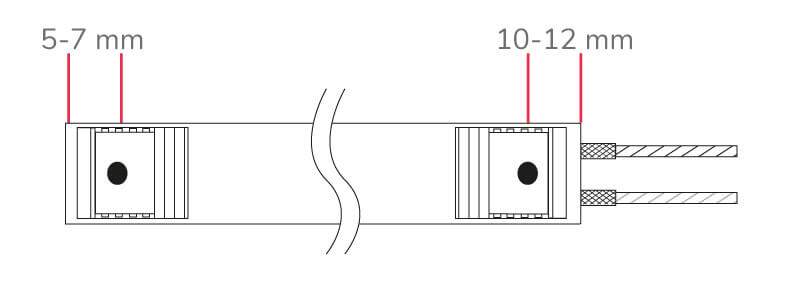

CARTRIDGE HEATERS WITH PT-100 SENSOR
They can be manufactured as follows:
Position 1. Starting from 6.35 mm ø.
Position 2. Starting from 12.50 mm ø.

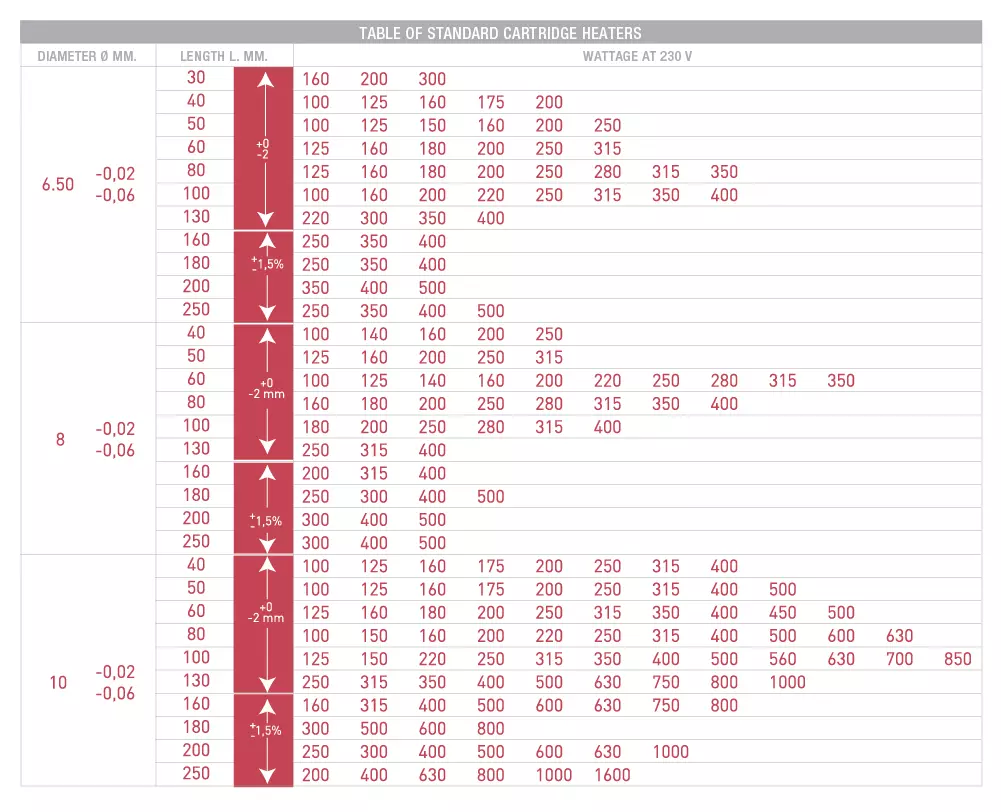

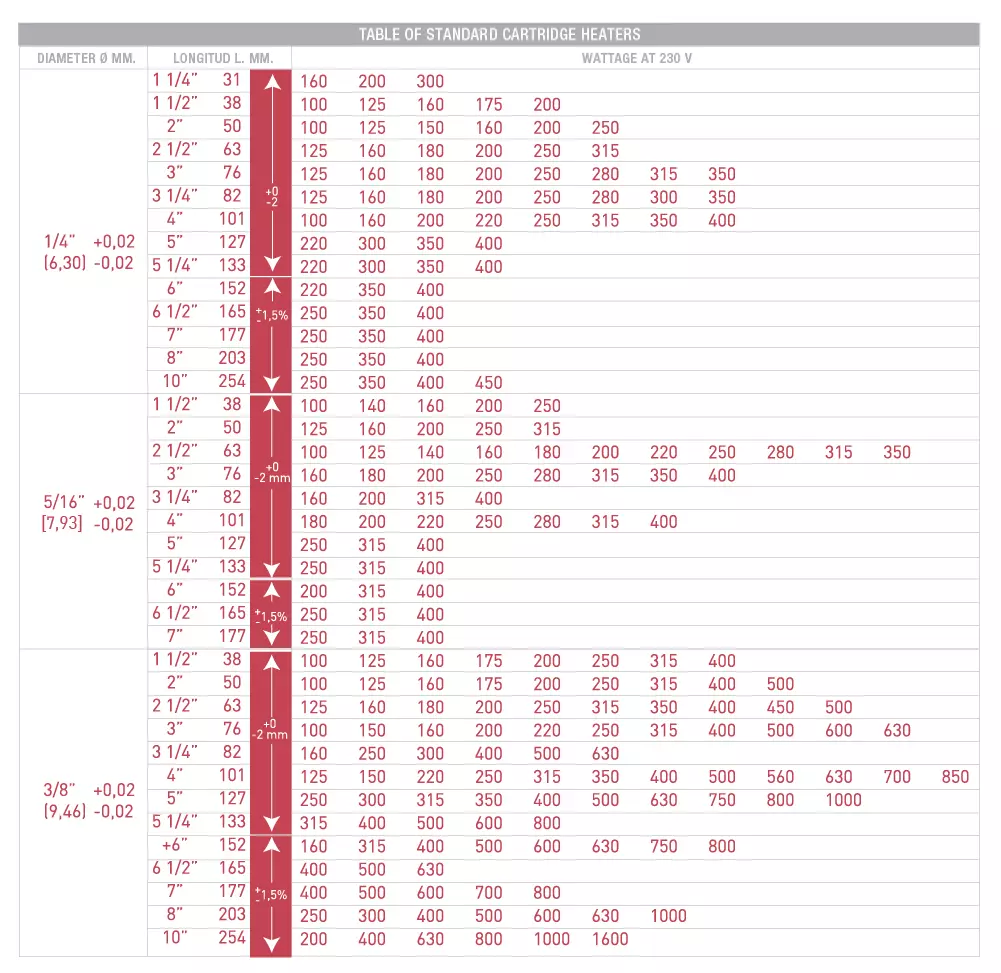

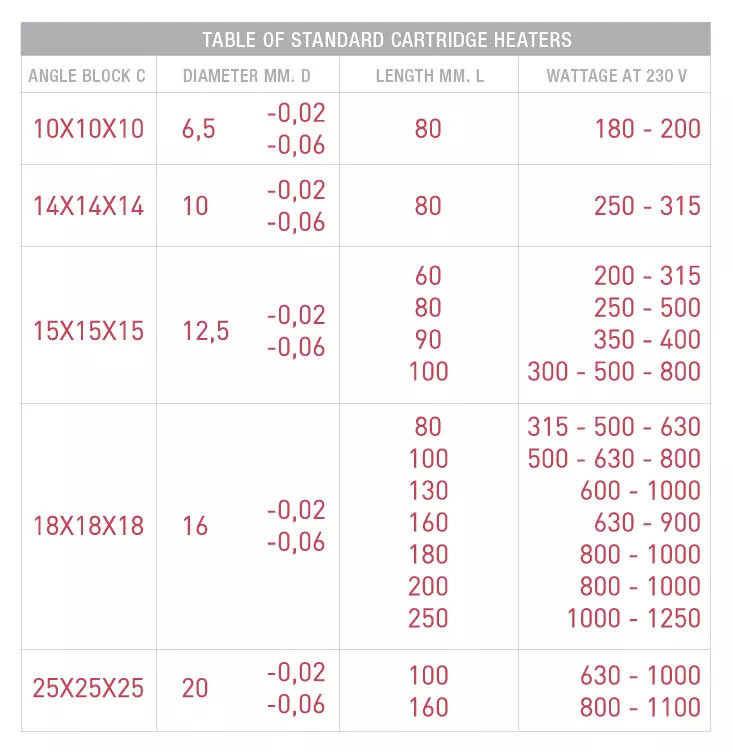

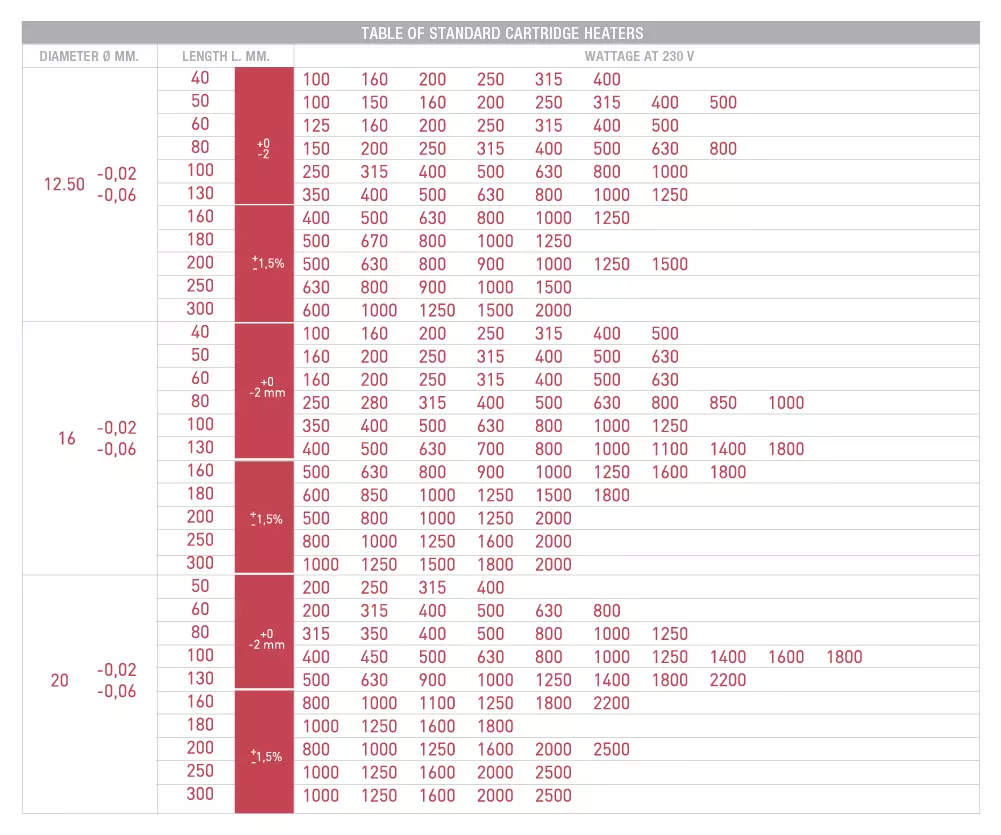

TABLE OF STANDARD CARTRIDGE HEATERS
Standard leads length: Without Thermocouple 250mm / With Thermocouple Tipo J (F-CON) 1000mm

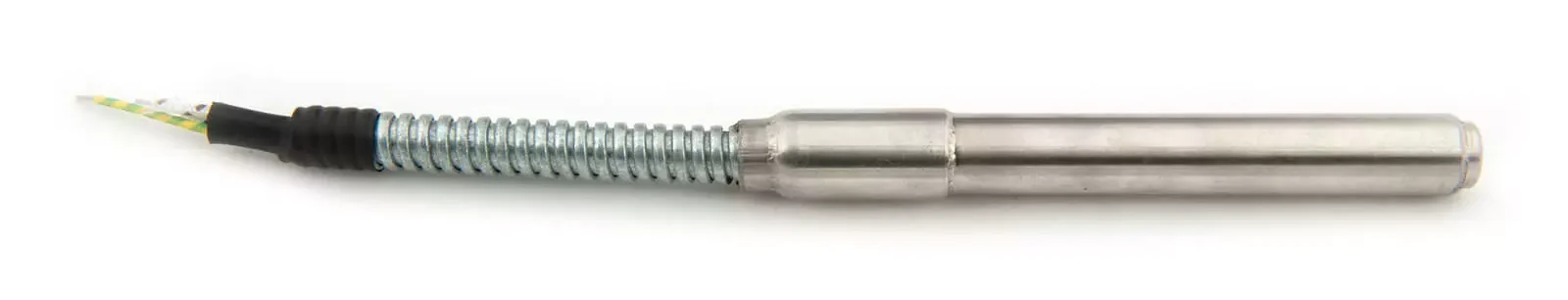

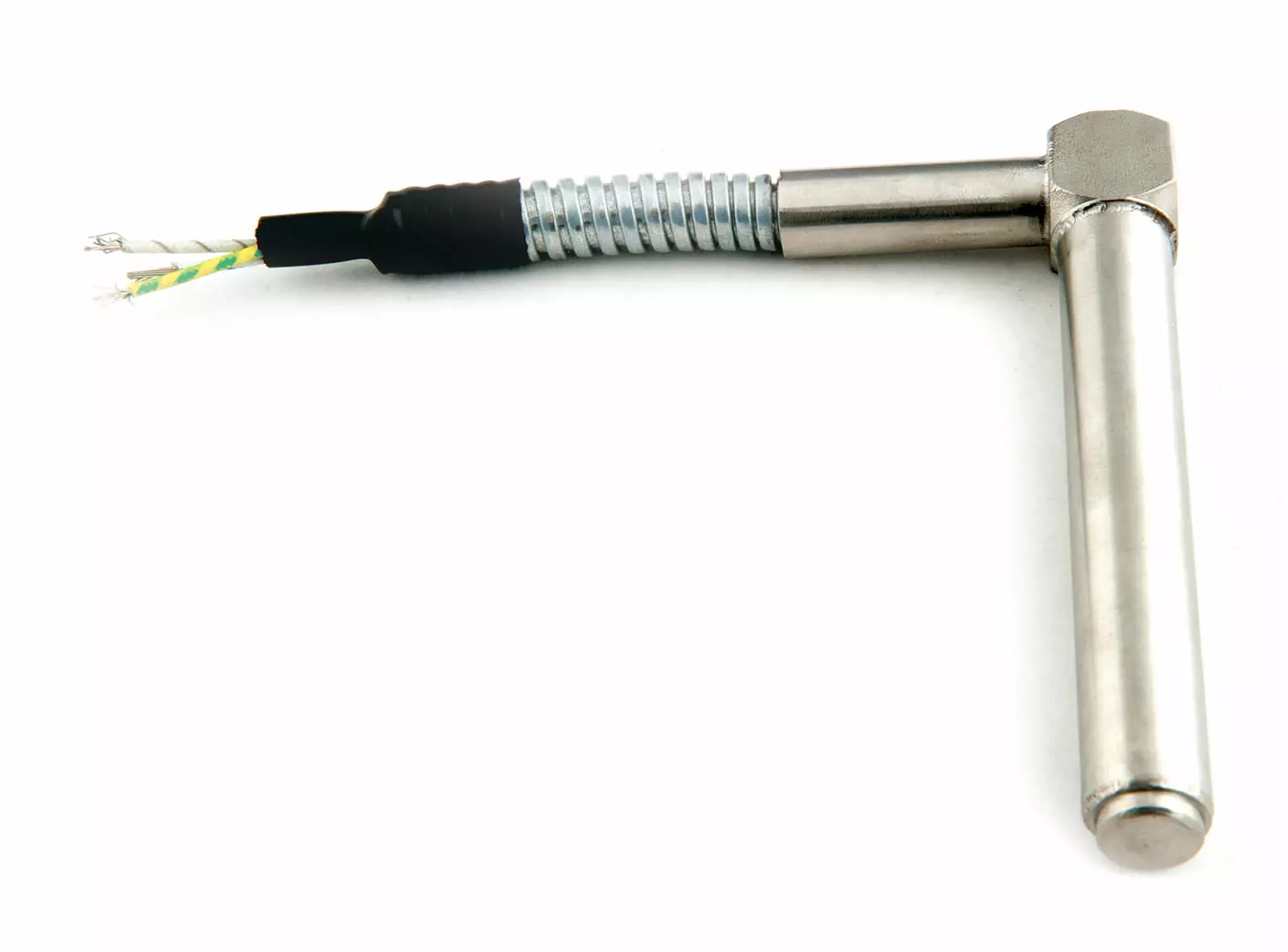

RAC-HEATER FOR DIE CASTING (ZAMAK)

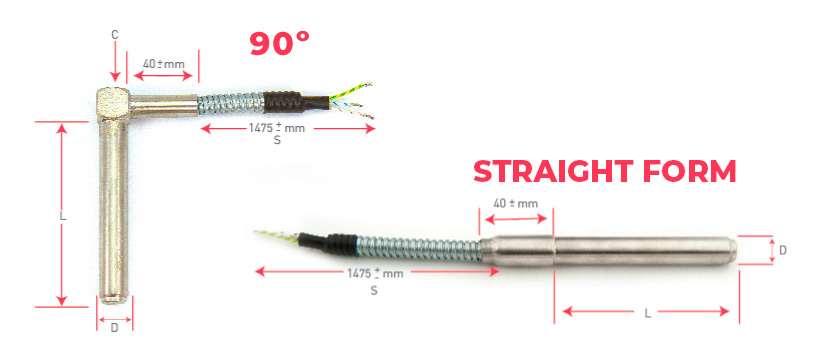

GENERAL SPECIFICATIONS
- Connection length 1475mm high temperature resistant.
- Stainless steel pipe and tightly welded.
- Cable protection with galvanized steel conduit.
- Isolation of compressed MgO.
- Rear pivot for extraction included in the length.
- The pivot diameter is 3 mm smaller than the diameter of the cartridge.
- On request we can make any modification.
